Official distributor Siemens
SIEMENS SINAMICS S120 COMBI
SINAMICS S120 COMBI REINFORCEMENT PLATES (2 pcs.)
under the orderSIEMENS SINAMICS G120C RATED
SINAMICS G120C RATED POWER 7,5KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSB 196x 100x 225,4 (HXWXD) EXTERNAL 24V

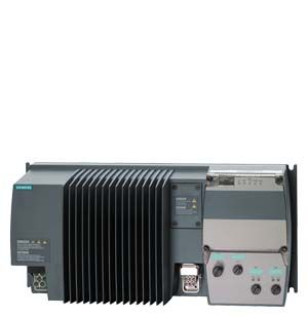

under the orderSIEMENS SINAMICS G110D AC
SINAMICS G110D AC Drive, without Repair circuit with integrated Class A filter with integrated braking chopper with AS-Interface bus interface 380-500 V 3AC +10/-10% 47-63 Hz Power high overload: 4.0kW at 200% 3s, 150% 60S, 100% 300S; Ambient temperature -10 to +40 °C 210x 450x 165 (HxWxD), FSB Degree of protection IP65 without operator panel
under the orderSIEMENS SINAMICS DOCUMENTATION DRIVE
SINAMICS DOCUMENTATION DRIVE TECHNOLOGY MOTORS OF THE PRODUCT FAMILY 1FN6 CONFIGURATION MANUAL EDITION 02/10, French

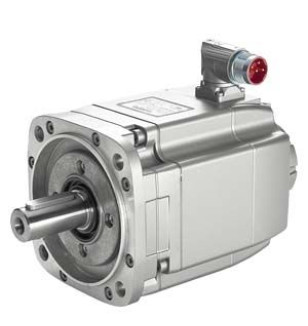

under the orderSIEMENS SIMOTICS S-1FK2 CT
SIMOTICS S-1FK2 CT Servo motor M0=0.64 Nm; PN = 0.2 kW at nN=3000 rpm; Converter at max. 240 V supply system; with holding brake; Degree of protection IP65; Shaft D14x30 mm with feather key; Absolute encoder 22-bit + 12-bit multi-turn (encoder AM22DQC); with OCC interface; Connector size M12, rotatable;
under the orderSIEMENS SIMOTICS S Synchronous
SIMOTICS S Synchronous motor 1FK7-CT PN=7.7kW; UDC=600V M0=48Nm (100K); NN=2000rpm; Naturally cooled
under the orderSIEMENS SIMOTICS S-1FL6-1FL6 Operating
SIMOTICS S-1FL6-1FL6 Operating voltage 3AC 400 V Pn=3.5 kW; Nn=2000 rpm M0=22 Nm; MN=16.7 Nm Shaft height 90 mm Absolute encoder 20 bit (12-bit multi-turn) with feather key, tolerance without holding brake Degree of protection IP65 with sealing ring compatible with the converters SINAMICS V70 & V90
under the orderSIEMENS SIMOTICS GP MOTOR
SIMOTICS GP MOTOR TYPE: 1AV4204A Low-voltage motor, IEC Squirrel-cage rotor, self-ventilated, IP55 Temperature class 155(F) according to 130(B) aluminum housing SUPER Premium Efficiency IE4, 2-pole * Size 200L, * 30kW (50 Hz) 33.5kW (60 Hz)
under the orderSIEMENS SIMOTICS SD MOTOR
SIMOTICS SD MOTOR TYPE: 1CV2105D Low-voltage motor, IEC Squirrel-cage rotor, self-ventilated, IP55 Temperature class 155(F) according to 130(B) cast iron frame Basic line High Efficiency IE2, 8-pole * Size 100L * 1.1kW (50 Hz) 1.3kW (60 Hz)
under the orderSIEMENS SIMOTICS SD MOTOR
SIMOTICS SD MOTOR TYPE: 1CV3184C Low-voltage motor, IEC Squirrel-cage rotor, self-ventilated, IP55 Temperature class 155(F) according to 130(B) cast iron frame Basic line Premium Efficiency IE3, 60 Hz, P60: IE2 6-pole * Size 180L, * 15kW (50 Hz) 18kW (60 Hz)
under the order
