Official distributor Siemens
SIEMENS SIMOTICS S-1FL6-1FL6 Operating

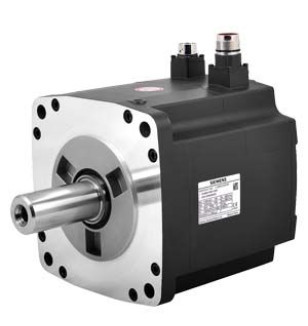

SIMOTICS S-1FL6-1FL6 Operating voltage 3AC 400 V Pn=3.5 kW; Nn=2000 rpm M0=22 Nm; MN=16.7 Nm Shaft height 90 mm Absolute encoder 20 bit (12-bit multi-turn) plain shaft, Tolerance N with holding brake Degree of protection IP65 with sealing ring compatible with the converters SINAMICS V70 & V90
under the orderSIEMENS SIMOTICS GP MOTOR

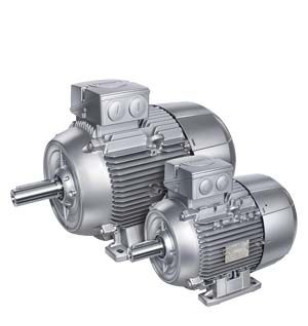

SIMOTICS GP MOTOR TYPE: 1AV1104J Low-voltage motor, IEC Squirrel-cage rotor, self-ventilated, IP55 Temperature class 155(F) according to 130(B) aluminum housing Double pole-changing * One winding in Dahlander circuit 4/2-pole * Size 100L* 1.9/2.4kW (50 Hz)
under the orderSIEMENS SIMOTICS SD MOTOR
SIMOTICS SD MOTOR TYPE: 1CV2112B Low-voltage motor, IEC Squirrel-cage rotor, self-ventilated, IP55 Temperature class 155(F) according to 130(B) cast iron frame Basic line In EEA: Minimum efficiency acc. to applicable statutory regulations to be considered! (as of 01.01.2017) High Efficiency IE2, 4-pole * Size 112M, * 4kW (50 Hz) 4.55 kW (60 Hz)
under the orderSIEMENS SIMOTICS SD MOTOR
SIMOTICS SD MOTOR TYPE: 1CV3205A Low-voltage motor, IEC Squirrel-cage rotor, self-ventilated, IP55 Temperature class 155(F) according to 130(B) cast iron frame Basic line Premium Efficiency IE3, 2-pole * Size 200L, * 37kW (50 Hz) 41.5kW (60 Hz)
under the orderSIEMENS SIMOTICS SD MOTOR
SIMOTICS SD MOTOR TYPE: 1CV3186C Low-voltage motor, IEC Squirrel-cage rotor, self-ventilated, IP55 Temperature class 155(F) according to 130(B) Cast iron frame, increased power Basic line Premium Efficiency IE3, 6-pole *Size 180L*18.5kW (50Hz/60Hz) 22 kW (60 Hz)
under the orderSIEMENS SIMOTICS SD MOTOR
SIMOTICS SD MOTOR TYPE: 1CV3310A Low-voltage motor, IEC Squirrel-cage rotor, self-ventilated, IP55 Temperature class 155(F) according to 130(B) cast iron frame Performance line Premium Efficiency IE3, 2-pole * Size 315S, * 110kW (50 Hz) 123kW (60 Hz)
under the orderSIEMENS SIMOTICS SD Motor
SIMOTICS SD Motor type: 1CV3354C Low-voltage motor, IEC Squirrel-cage rotor, self-ventilated, IP55 Temperature class 155(F), according to 130(B) cast iron frame Performance line Premium Efficiency IE3, 6-pole * Size 355 * 400 kW (50 Hz)
under the orderSIEMENS SIMOTICS FD, Low-voltage
SIMOTICS FD, Low-voltage motor, Squirrel-cage rotor Water-cooled, IC71W, IP55 for line operation Temperature class 180(H) according to 130(B) High Efficiency Size 315, 8-pole 690V/50Hz, 750 rpm, 290 kW
under the orderSIEMENS SIMOTICS FD, Low-voltage
SIMOTICS FD, Low-voltage motor, Squirrel-cage rotor Water-cooled, IC71W, IP55 for operation on SINAMICS With regulated infeed Temperature class 180(H) according to 155(F) High Efficiency Size 355, 6-pole 690V/50Hz, 1000 rpm, 520 kW
under the orderSIEMENS SIMOTICS FD, Low-voltage
SIMOTICS FD, Low-voltage motor, Squirrel-cage rotor Water-cooled, IC71W, IP55 for operation on SINAMICS with non-regulated infeed Temperature class 180(H) according to 155(F) High Efficiency Size 315, 4-pole 400 V/50 Hz, 3000 rpm, 410 kW
under the order
